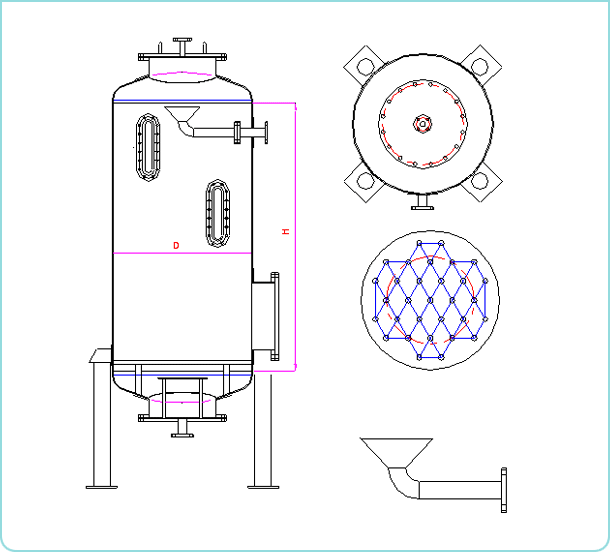

| Model
No |
Flow
(m3/hr) |
Diameter
mm (D) |
Height
mm (H) |
Flange |
Media
Volume
(ℓ) |
BACK
WASH
FLOW RATE
(m3/hr) |
| In (A) |
Out (A) |
| AT-MMF-05S |
3~7 |
450 |
1,830 |
30 |
30 |
220 |
10.7 |
| AT-MMF-10S |
8~12 |
900 |
1,830 |
40 |
40 |
800 |
21.5 |
| AT-MMF-15S |
13~17 |
1,300 |
1,830 |
50 |
50 |
2,000 |
32.2 |
| AT-MMF-20S |
18~22 |
1,800 |
1,830 |
65 |
65 |
3,250 |
42.9 |
| AT-MMF-25S |
23~27 |
2,200 |
1,830 |
65 |
65 |
4,850 |
53.6 |
| AT-MMF-30S |
28~32 |
2,800 |
1,830 |
80 |
80 |
7,900 |
64.3 |
| AT-MMF-35S |
33~37 |
3,200 |
1,830 |
80 |
80 |
10,000 |
75.0 |
| AT-MMF-40S |
38~42 |
3,600 |
1,830 |
80 |
80 |
13,000 |
85.8 |
| AT-MMF-45S |
43~47 |
4,000 |
1,830 |
100 |
100 |
16,000 |
96.5 |
| AT-MMF-50S |
48~52 |
4,600 |
1,830 |
100 |
100 |
18,600 |
107.2 |
|
|
|
